Box packing workstation 价格:

Online inquiry
Product Details Specification parameters Product packaging



Equipment features

1.  Use SCADA industrial robots, equipped with box storage tables, vacuum systems, hot melt adhesive systems, etc., with a compact layout and small footprint;

2. Adopt high-end intelligent controller, which is highly reliable and can adapt to harsh industrial site environment;

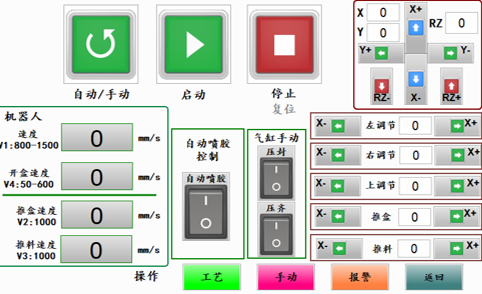

3. The process parameter setting is simple, the touch screen switches specifications with one click, and the operation is extremely simple;

4. It can be adapted to a wide range of box types, making production changes easy and fast, with an efficiency of up to 10 boxes/minute;

5. Appearance material: Made entirely of stainless steel, anti-rust and anti-corrosion, beautiful and hygienic.





Model


Cartoning speed


Powered by

Total power


Air source

Overall dimensions

Weight

S-10

10 boxes/min.



 AC 220V

4KW

≥0.45MPa



L1800×W800×H1700mm

300kg
